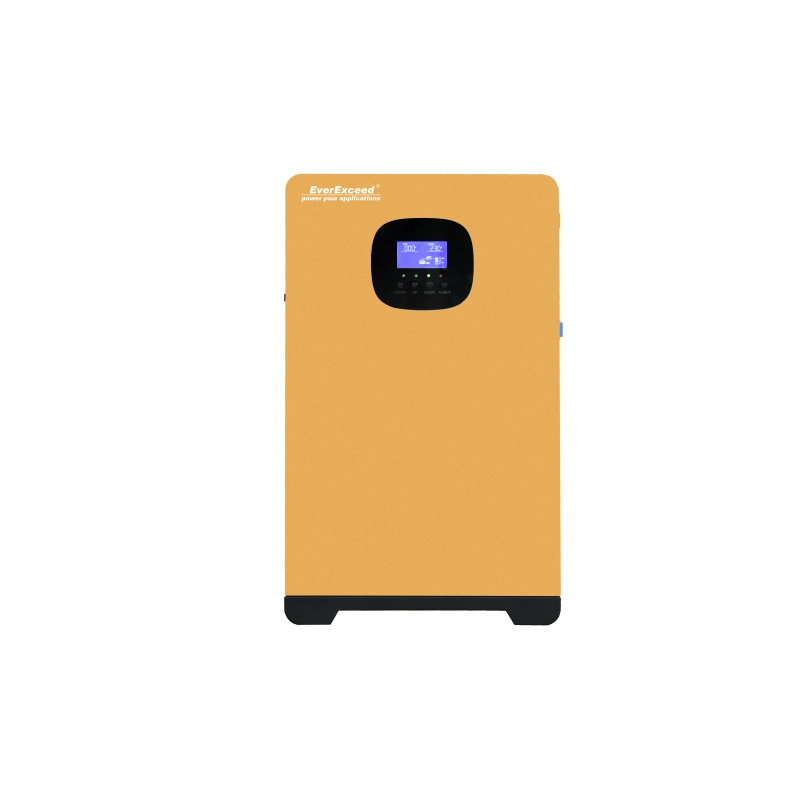

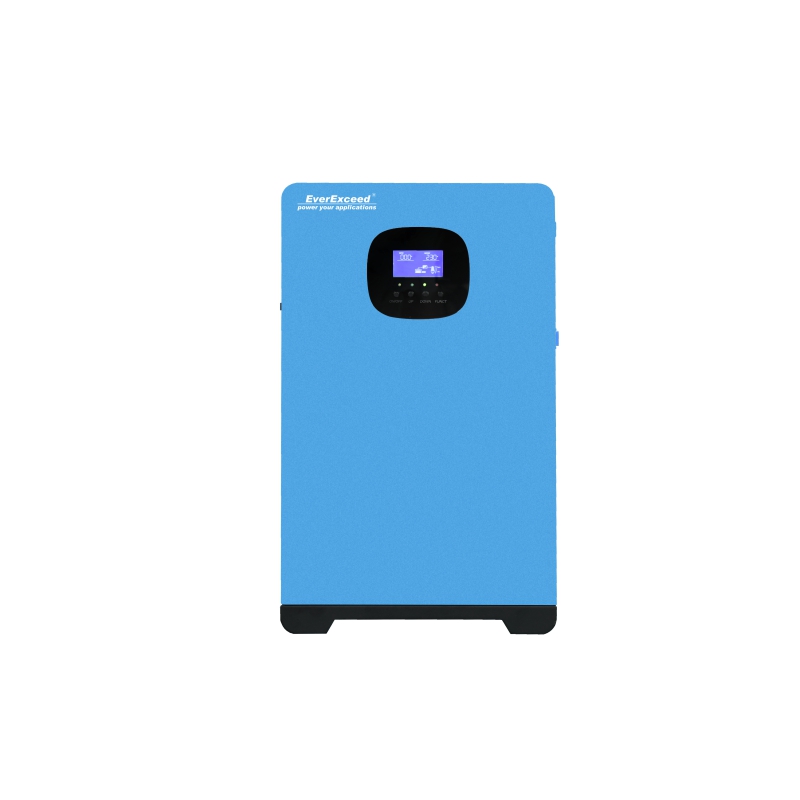

All-in-one Smart Commercial Energy Storage System

PV Solar All-in-One Wall-Mounted Energy Storage System with Built-in 2.56kWh/5.12kWh LiFePO4 Battery

EverExceed is excited to introduce the newly upgraded Wall-mounted EverGEN Solar Pro ESS—a sleek, ultra-safe, and highly efficient home energy storage system. Designed for homeowners seeking a reliable, cost-effective, and aesthetically pleasing power solution, this cutting-edge system integrates a high-performance pure sine wave solar hybrid inverter, enhanced LiFePO4 battery, and smart power distribution.
  • brand:

    EverExceed
  • Model:

    EGS1K-2.5E Pro/ EGS2K-5.1E Pro/ EGS3K-5.1E Pro
  • Inverter Power:

    1200W / 2000W / 3000W
  • Battery module capacity:

    2.56kWh 5.12kWh
  • Application:

    Backup power supply
Features

PV Solar All-in-One Wall-Mounted Energy Storage System with Built-in 2.56kWh/5.12kWh LiFePO4 Battery





Advantage 1: "much Safer "


1) Seamless Power Supply: Less than 15ms switching time, keeping your home uninterrupted.

2) High-Quality LiFePO4 Battery: Upgraded to 200Ah, ensuring a longer lifespan with 6000+ cycles.





Advantage 2: "much Smarter "



1) High efficiency MPPT: Fast charging modules up to 60A.

2) Real-Time Monitoring: LCD screen displays energy data at a glance.

3) Plus keep your home powered and protected during an emergency or grid outages.Solar PV Integration: Maximizes self-consumption and reduces electricity bills.






Advantage 3: much “Simpler”


1) Plug & Play: Hassle-free setup with minimal wiring.

2) Effortless Installation: All-in-one design, saving 80%+ installation time and costs.
3) Wall-mounted Design: Space-saving and aesthetically pleasing for modern homes.




TECHNICAL DATA

Model EGS1K-2.5E Pro EGS2K-5.1E Pro EGS3K-5.1E Pro
System Specification
Rated AC Output Power 1200W 2000W 3000W
Energy Capacity Range 2.56kWh 5.12kWh 5.12kWh
Battery Type Lithium Ion Battery (LFP, Lithium Iron Phosphate Technology)
Max. AC Charging Current 60A
Max. PV Charging Current 60A
Max. Hybrid Charging Current 120A
Operating Temperature -20 to 50℃
Storage Temperature -30℃ to 70℃
Relative Humidity 0~95%(no condensation)
Operating Altitude 2000m
Protection Degree IP21
System Dimension Width 360mm 433mm 433mm
Depth 152mm 165mm 165mm
Height 630mm 750mm 750mm
Weight 32kg 60kg 60kg
Cooling Method               Fans
PV String Input Specification
Max. PV Input Power 1000W 1500W
Max. PV Input Voltage 125VDC 145VDC
Recommend PV Input Voltage 85VDC 110VDC
MPPT Voltage Range 60-85VDC 75-110VDC
Max. PV Charging Current 60A 60A
Inverter Specification
Rated AC Output Power 1200W 2000W 3000W
AC Input Voltage 90Vac to 280Vac
AC Output Voltage 230Vac
Rated Frequency 50 / 60Hz
Max. AC Charging Current 60A
Power Factor 1.0
Norminal Output Wave Form Pure Sine Wave
Transfer Time <15ms
Max. PV to Load Efficiency 97%
Max. Battery to Load Efficiency 91%
Battery Specification
Norminal Capacity 200Ah
Battery Voltage 12.8VDC 25.6VDC
Battery Quantity 1 1
Energy Capacity 2.56kWh 5.12kWh
Cycle Life 6000+ times cycle Life
Protection
Short Circuit Protection Yes
Overload Protection Yes
Over Temperature Protection Yes
Battery Voltage High/Low Protection Yes
AC Input Voltage High/Low Protection Yes

SUCCESSFUL CASES





Download

If you need to download files, you need to register as our member first ! log in / registered

  • EverGEN Pro Series Energy Storage Solution V2.1-20240913(B).pdf
